Engineering Steel Castings - Valve Castings
Custom Valve Castings Manufacturer
Many valve components specially the valve bodies and valve bonnets contain geometries that are difficult or expensive to manufacture by machining from bar stock, plate, or forgings. One of the most important advantages of investment casting is its ability to produce components close to their final geometry. Compared with machining a valve component from a solid block of stainless steel or alloy steel, investment casting can significantly reduce the amount of material that needs to be removed during subsequent machining.
Why use investment casting process for valve bodies and valve bonnets and other valve components?
Valve components are critical pressure-containing and flow-control parts used in demanding applications across the oil and gas, chemical processing, water treatment, power generation, marine, and general industrial sectors.
Because valve components often combine complex geometries, internal passages, sealing surfaces, mounting features, and demanding material requirements, selecting the right manufacturing process is essential to achieving the required performance, dimensional accuracy, and cost efficiency.
Investment casting, also known as lost wax casting or precision casting, is an effective manufacturing process for many valve components, particularly when the design requires complex geometry, good dimensional control, excellent surface finish, and near-net-shape production.
At Lantian investment casting foundry, who is a large scaled lost wax casting production foundation in China since 1997, investment casting can be combined with heat treatment, CNC machining, and inspection to provide finished or semi-finished valve components according to customer drawings and specifications.
Materials
Stainless Steel
- CF8
- CF8M
- CF3
- CF3M
- Other specified stainless steel grades
Carbon Steel
- WCB
- WCC
- LCB
- Other specified carbon steel grades
Alloy Steel
- Low alloy steels
- Heat-resistant alloy steels
- Other engineering alloy grades
Material selection should always be based on the actual operating environment, including pressure, temperature, fluid characteristics, corrosion requirements, and applicable standards.
Valve Castings
Benefits
1. Complex Geometries Can Be Produced More Efficiently
2.Near-Net-Shape Manufacturing Reduces Machining Requirements
3.Excellent Surface Finish
4.Good Dimensional Control
5.Suitable for Stainless Steel and Other Engineering Alloys
6.Better Material Utilization for Complex Components
7.Design Flexibility for Valve Manufacturers
8.Consistent Production for OEM Applications
What Valve Components Can Be Manufactured by Investment Casting?
Investment casting is particularly suitable for small-to-medium-sized valve components with relatively complex geometries. Depending on the design, material, size, and production requirements, typical investment-cast valve components include: Valve Bodies, Valve Bonnet and Valve Covers.
Valve body castings are among the most important applications.
Potential applications include:
- Ball valve bodies
- Globe valve bodies
- Check valve bodies
- Gate valve bodies
- Butterfly valve bodies
- Other custom valve housings
Valve bonnet castings can also be manufactured using investment casting. Depending on the design, valve bonnets may include:
- Flanged connections
- Bolt holes
- Internal cavities
- Stem openings
- Sealing areas
- Complex external profiles

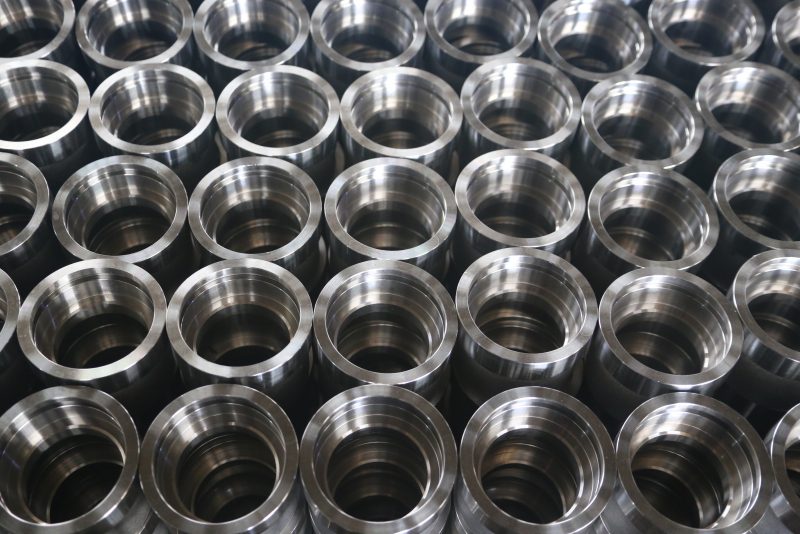

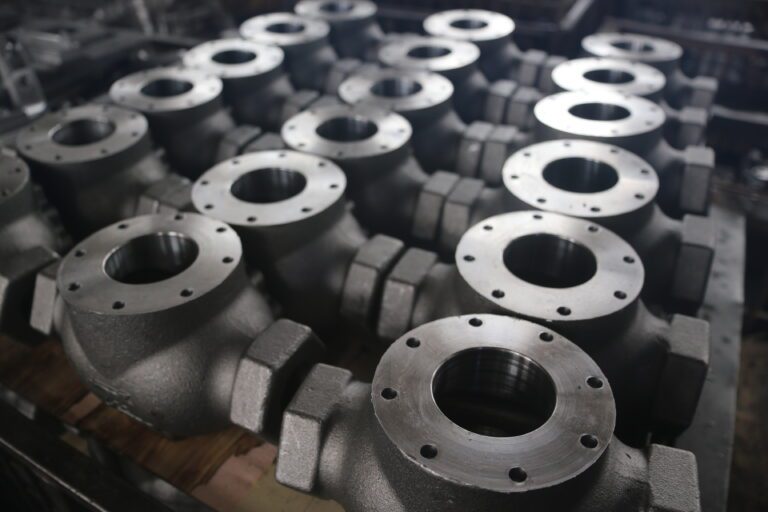

valve body castings

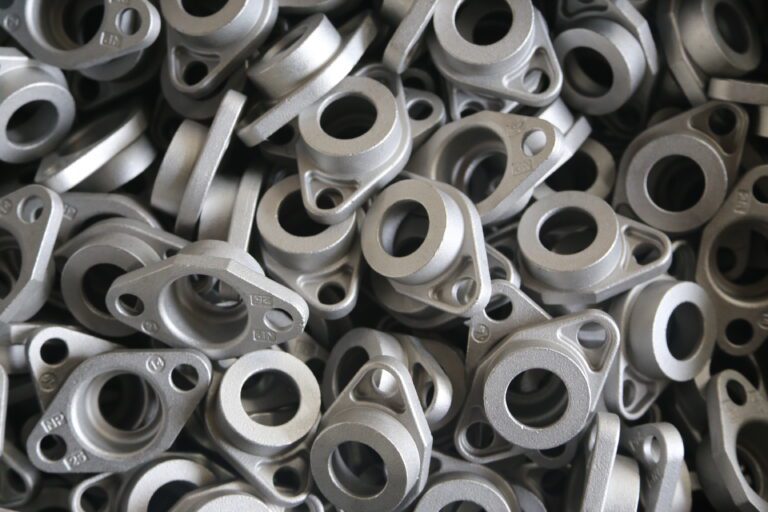

Valve Bonnet Castings
Lantian Precision Machinery Manufacturing company specializes in precision investment casting and CNC machining for industrial components since 1997.

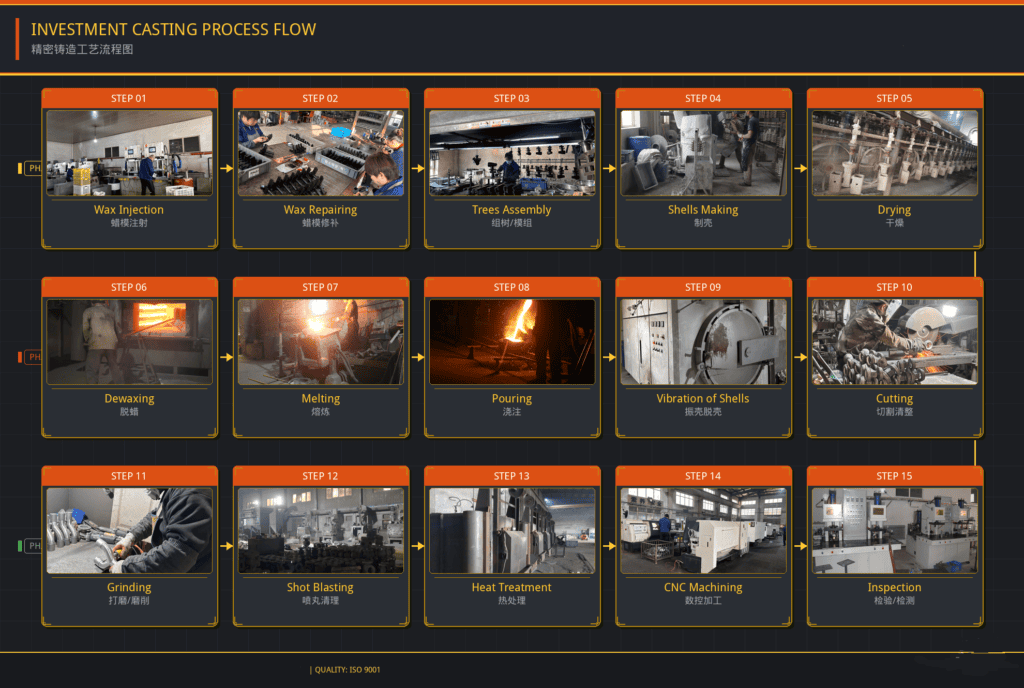

Casting Process include:
- Silica Sol Shell Investment Casting
- Water Glass Shell Investment Casting
- Composite Shell Investment Casting
- CNC Machining
Our capabilities include steel casting in:
- Stainless steel
- Carbon steel
- Low alloy steel
- Other specified engineering alloys
We support applications across:
- Valve Industry
- Pump Industry
- Oil & gas Industry
- Automotive
- Machinery Industry
- Other industrial applications
By combining investment casting, heat treatment, CNC machining, and inspection, Lantian investment casting foundry can support customers from cast component development through finished cnc machined parts for valve industry manufacturer, pump industry manufacturer, oil & gas industry manufacturer.
For OEM customers, our objective is not simply to supply a casting, but to provide a reliable manufacturing solution based on the customer’s drawings, material requirements, tolerances, production volume, quick delivery, quality assured and application.
