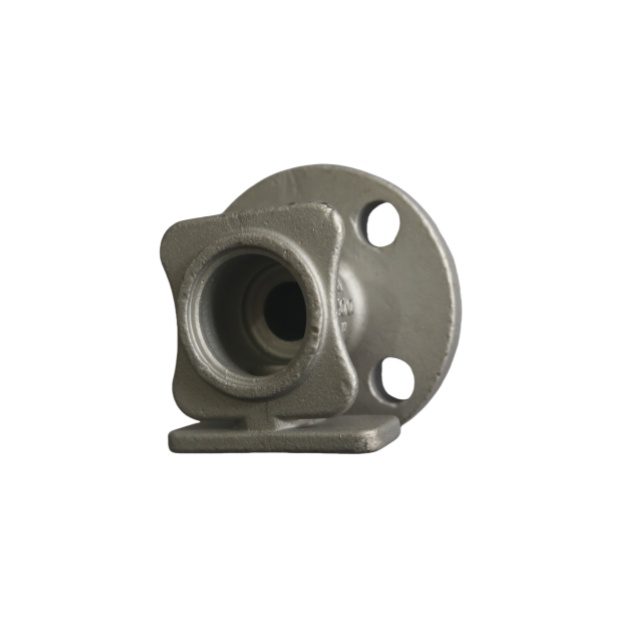

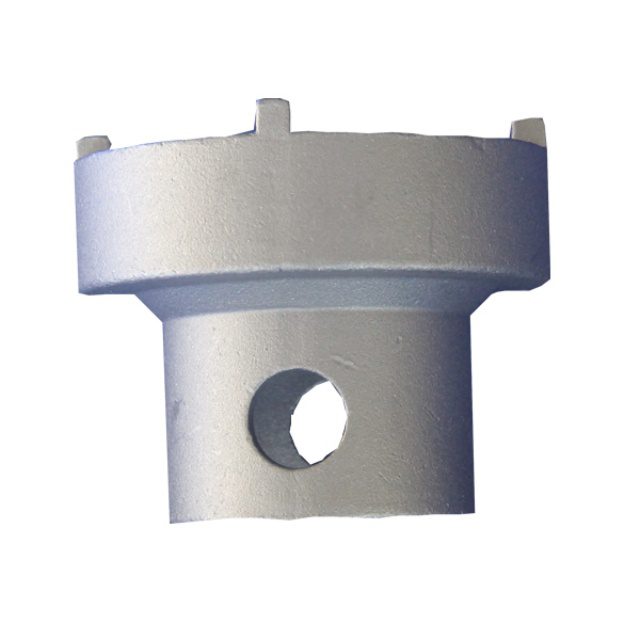

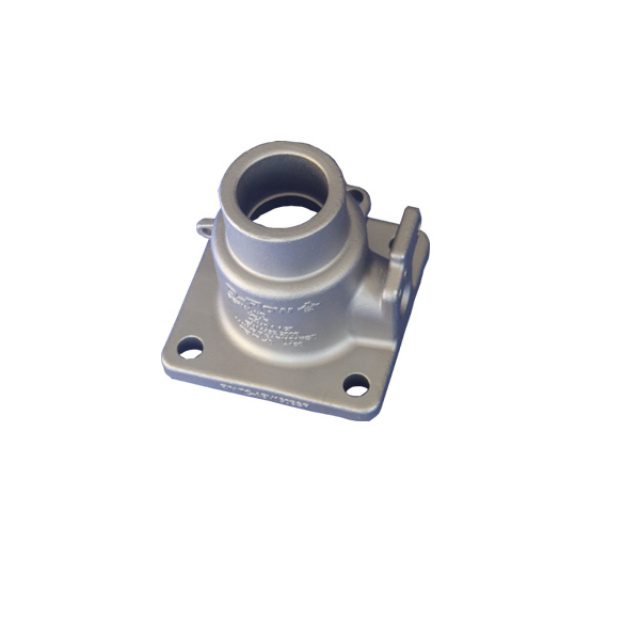

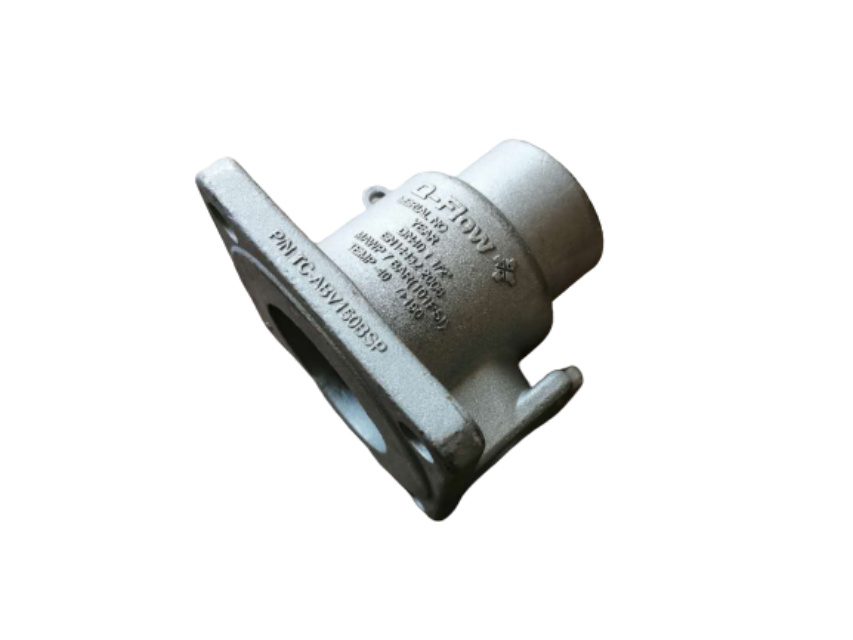

Custom Valve Body Casting Manufacturer
Lantian Casting was established in 1997, a large-scale investment casting foundry. The investment cast valve bodies manufactured from stainless steel, carbon steel and alloy steel for industrial valve manufacturers and engineering applications.
What is Valve Body Casting？
Valve body is the main pressure-containing component of an industrial valve. It houses the internal flow passages and provides the connection points for other valve components. For complex valve body geometries, investment casting can provide a practical manufacturing solution by producing near-net-shape components with reduced machining requirements. Lantian Casting Casting manufactures custom valve body castings according to your drawings, 3D models and samples.
About Our Custom Valve Body Casting:
- Engineering Designs: OEM/ODM according to Drawings
- Materials for custom valve body casting manufacturer: carbon steel, low alloy steel, stainless steel etc.
- Casting Process: Silica Sol Investment Casting, Water Glass Investment Casting, Composite Shell Investment Casting
- Unit Weight: 0.05-80kgs
- Standard: ASTM, AISI, JIS, EN, BS, GB etc
Why Lantian Foundry for your Custom Valve Body Casting Manufacturer?
- Established in 1997
- 4 Production Mills
- 400+ Employees
- 3 kinds of casting process: Silica Sol Investment Casting, Water Glass Investment Casting, Composite Shell Investment Casting
- 1000+ Casting Parts
- ISO9001 & TS16949 Certified
- 5000+ Tons Annual Capacity
- 100% Quality Check
Lantian Precision Machinery Manufacturing company is a large and professional precision casting foundry in China for 30 years ,having rich experience in silica sol shell casting, water glass shell casting and a composite shell processing casting The main products we produced are carbon steel investment castings, stainless steel investment castings, and low alloy steel investment castings. The casting components are widely used for various industries: valve industry, pump industry, oil&gas industry, machinery industry etc
We Can Cast:
- Ball Valve Body Casting
- Gate Valve Body Casting
- Globe Valve Body Casting
- Check Valve Body Casting
- Control Valve Body Casting
Overview of our foundry:
Investment Casting Processing
Wax Injection—Wax Pattern—Repairing—Wax Inspection—Welding & Tree Assembly —Shells Making (First paste, Sand, Re-slurry, Drying)—Dewaxing—Mold roasting—Chemical Analysis—Casting(Pouring Molten Steel)—Vibration Shells— Cutting—Grinding Gate—Initial Inspection (Hairy Inspection)—Shot Blasting—CNC Machining—Polishing—Finished Inspection—Packing.
1. Design of tooling is carried out according to the requirements of the drawing design of the parts.
2. Manufacturing of tooling with steel or aluminum alloy or other material according to the requirements of the casting design drawings.
3. Manufacturing of molten molds by using a hydraulic wax injection machine or a pneumatic wax injection machine to inject paste or liquid wax into the die casting to make a molten (wax) mold.
4. Repairing the wax pattern, after wax injected, repairing the wax pattern by scraping, cutting, chipping etc.
5. Welding and assembling the wax pattern to the prefabricated wax rod (or pouring system) to form a group tree.
6. Immerse the pattern in a special degreasing liquid to remove the grease and release agent on the surface of the wax pattern to increase the coating and hanging properties of the wax pattern.
7. Shells Making: Dip the mold surface in a refractory coating (slurry) and sprinkle a layer of sand (zirconium sand, corundum sand, silica sand, etc.). Then dry and harden the shell with sand (silica sol mold shell), harden the coating in a hardener (water glass mold shell) or dry and harden it with ammonia (ethyl silicate mold shell), then take it out and dry it in the air. Repeat this process several times to form a mold shell of a certain thickness on the surface of the mold.
8. Melting the mold and dewaxing by heating the mold shell in steam or hot water to melt the wax mold and obtain a mold shell with a cavity inside.
9. Roasting: Put the mold shell into a heating furnace for high-temperature baking to burn off the residual wax, various volatile and moisture in the mold shell to increase the air permeability and high-temperature strength of the mold shell.
10. Casting (Molten metal pouring): Pour the melted high-temperature molten metal with qualified chemical composition into the fully baked hot mold shell.
11. Vibration of shells: The castings are shelled manually or by a vibrating shelling machine.
12. Cutting and Grinding: Cutting the blank cast and grinding the pouring and rising gate, and then go through other cleaning and post-processing processes.
13. Shot-Blasting: Shot blasting of the cast parts to achieve a final cast parts or for further processing.
14. CNC Machining if needed.
15. Packing: After each piece of the cast parts was inspected strictly then go for packing and delivery.
Lantian casting has a complete and advance testing equipment for the precision investment castings : We have Italy F – 20 direct reading spectrometer, Q6 imported from Germany and domestic spectrometer analysis of the elements C, Si, Mn, P, S, Ni, Cr, Mo, V, Ti, Al, Cu, Mg, Ce, Nb, B, W; In the aspect of physical performance testing, we can carry out tensile test, impact test, hardness detection and metallographic analysis etc.The fluorescent magnetic particle detector can also be used for magnetic particle inspection, ultrasonic inspection and coloring inspection on the precision alloy steel cast products.
1. Chemical/Metallography analysis
2. Tensile strength / Elongation rate /Shrinkage rate/Impact
3. Hardness test/CMM test
4.Non-destructive tests(including dye-penetrant, ultrasonic, magnetic particle and radiography)
Packing of our custom valve body castings:
Applications of Valve Body Castings
- Oil & Gas
- Chemical Processing
- Water Treatment
- Power Generation
- Marine
- General Industrial Equipment
