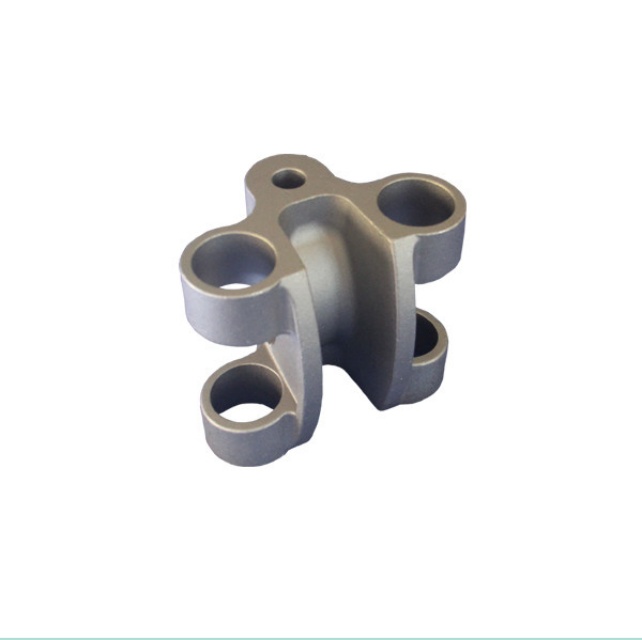

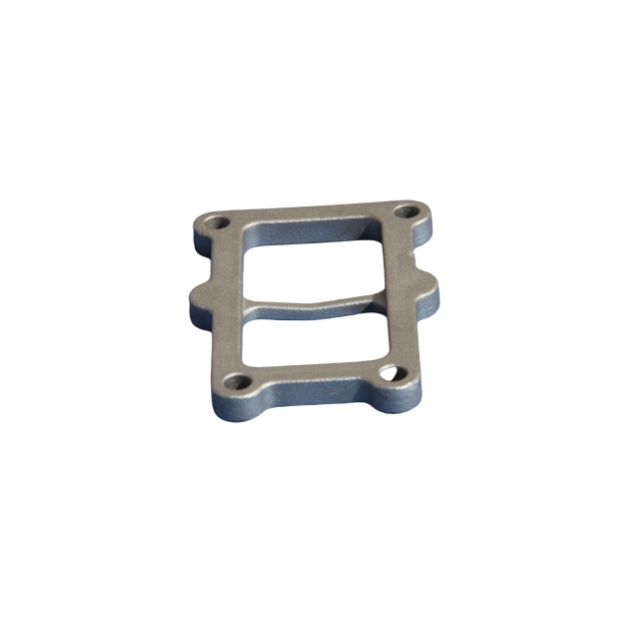

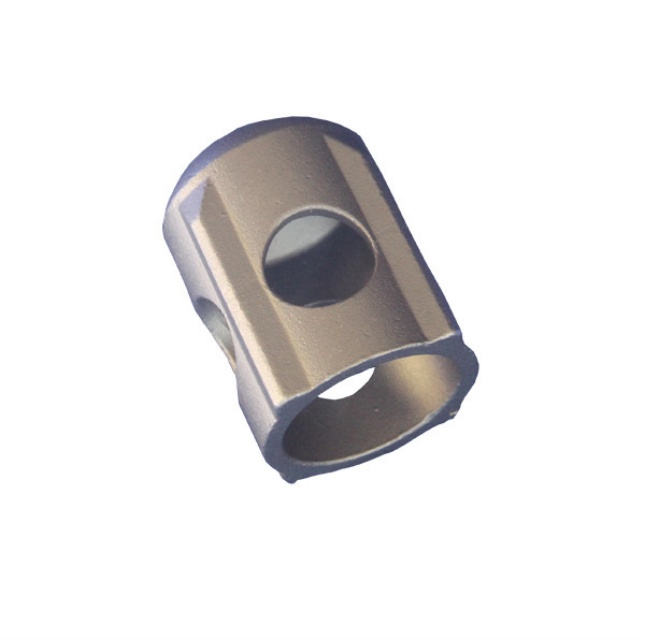

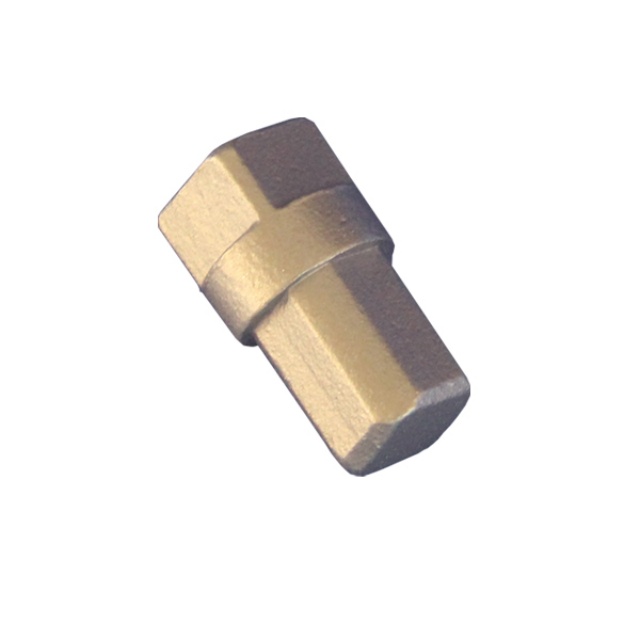

China Manufacturing Lost Wax Casting Components
Lost Wax Casting material: carbon steel, low alloy steel, stainless steel etc.
Casting Process: Silica Sol Investment Casting, Water Glass Investment Casting, Composite Shell Investment Casting
Unit Component Weight: 0.05-80kgs
Engineering Designs: OEM/ODM according to Drawings
Standard: ASTM, AISI, JIS, EN, BS, GB etc
Lost Wax Casting Components Application: Automotive & Vehicle, Marine and Boat, Valves and Pumps, Engine and Motor Parts, Oil &Gas,Machinery etc. There are over 1000 kinds of products, including auto parts, marine parts, vehicle parts, railway road parts, petrochemical parts, agricultural machinery parts, valve parts, pump parts, impeller parts, engine parts, motor parts, bridge parts, oil & gas platform parts, offshore machinery parts etc.Products are exported to the United States, Japan, Europe, southeast Asia and more than 20 countries and regions, and our products are highly appraised by our new and regular customers.
Advantages of Lost Wax Casting Components:
· Flexible Size and Weight Range:
The investment casting process can produce casting products exactly according to the drawings and mold made, casting weight is from 0.5kgs to 80kgs,meeting various demand for various industries.
· Versatile and intricate shapes:
With the precision mold made , Investment casting processing provides casting components with consistent and repetitive close tolerances along with intricate passages and contours, while many of these can not be finished by machine tools.And the investment casting processed cast parts can obtain net shape or near net shape components easily.
The technician will consider the work efficiency of the processing during design period, and many metal components are combined into a single casting, in this way, the investment casting components typically reduced part complexity and delivers more dimensional accuracy. It is a kind of good alternative to welding or fabricating.
· Accurate and Smooth Surfaces:
The silica sol shell is used during the investment casting process to build smooth patterns produced by injecting wax into a polished aluminum die to achieve a finer surface quality. If surface required not so high, another investment casting processing sodium silicate shell can help to build components with its favorable cost. Investment castings contain no parting line because only one mold is used. Standards of surfaces blemishes and cosmetics are discussed and agreed upon with the customer based on the function.
· Dimensional Accuracy:
The cost of any part increases in proportion to the preciseness of its dimensional requirements. A close design review will permit modification to tolerances, undercuts, blind holes, etc. to allow higher production yields and lower piece costs. If closer than cast tolerances are necessary, the machining required for investment casting will be less than conventional castings or fabricated components.
· Quality and Integrity:
Casting integrity is an important feature of the lost wax casting process. Investment casting has a long history of serving demanding industries such as automotive, marine, petroleum, oil & gas, chemical, defense, medical, gas turbine engine, and various industry.
Investment Casting Process:

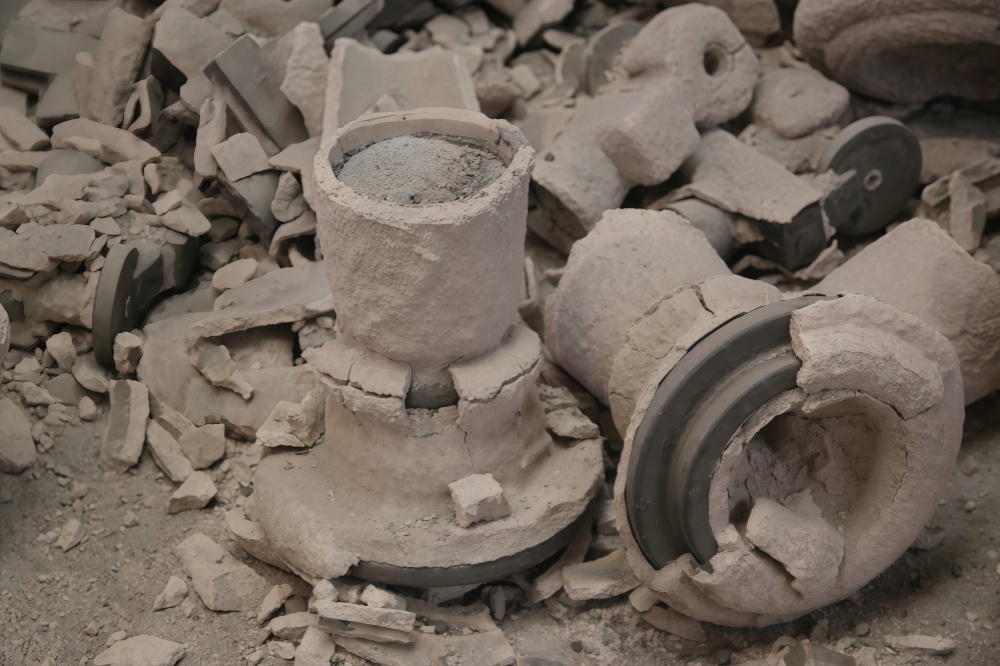

Wax injection—Wax pattern— Repair wax—Wax inspection—Group tree—Shells make (first paste, sand,re-slurry, drying)—De-waxing—Mold roasting— Chemical analysis—Casting (pouring molten steel)—Vibration shells—pouring of casting and pouring rod—Grinding gate—Initial inspection (hairy inspection)—Shot blasting—CNC Machining—Polishing—Finished inspection—Packing.
30 Years of Rich Experience in Lost Wax Casting process
Lantian Precision Machinery Manufacturing Company is specialized in lost wax casting components and cnc machining for 30 years. We can produce stainless steel castings, carbon steel castings, alloy steel castings and high-precision components according to different drawings and standards.
4 Branch Factories
Presently we have 4 branch factories covering an area of 19,000m2 on production of casting products. We have one sodium silicate processing (water glass processing) foundry, one silicon sol processing foundry, one cnc machining shop and one mold making plant and one sales office, over 400 staff working in our foundry.
Complete and Strict Quality Control
Our testing equipment for the investment casting parts is quite complete and advanced. We have spectrometers imported from Italy and Germany, and we can carry out the general physical test like tensile test, impact test, hardness detection etc. The fluorescent magnetic particle detector can also be used for magnetic particle inspection, ultrasonic inspection and coloring inspection. The precision lost wax casting components produced by our foundry are strictly controlled according to the relevant national standards and industry standards.
Passed the ISO 9001:2000 and TS 16949:2002 Certified
Our company passed the ISO 9001:2000 quality management system certification in January 2003. In March 2008, we obtained the TS 16949:2002 quality management system certificate, and we have obtained the production license issued by the Germanischer Lloyd.
Top 10 Brand Hardware Manufacture in China
In 2006, we were awarded the title of “Top 10 Reputable Enterprises in Liaoning Province” by the reputation committee of Liaoning Province. Our company always insists on the policy of “High Quality, Customer First, Continuous Innovation, Continuous Development,” for enterprise management, to meet customer expectations and higher requirements of quality.
Overview of our lost wax casting foundry:
Testings We Can Do:
We have complete testing equipment in our factory. In the aspects of chemical composition test: We have Italy F – 20 direct reading spectrometer, Q6 imported from Germany and domestic spectrometer analysis of the elements C, Si, Mn, P, S, Ni, Cr, Mo, V, Ti, Al, Cu, Mg, Ce, Nb, B, W;
In the aspect of physical performance testing, we can carry out tensile test, impact test, hardness detection and metallographic analysis etc.And we have fluorescent magnetic particle detector to do the magnetic particle inspection, ultrasonic inspection and coloring inspection.
Chemical analysis
Tensile strength
Elongation rate
Shrinkage rate
Impact test
Hardness test
Metallography
Non-destructive tests(including dye-penetrate, ultrasonic, magnetic particle and radiography)
Surface roughness test
CMM test

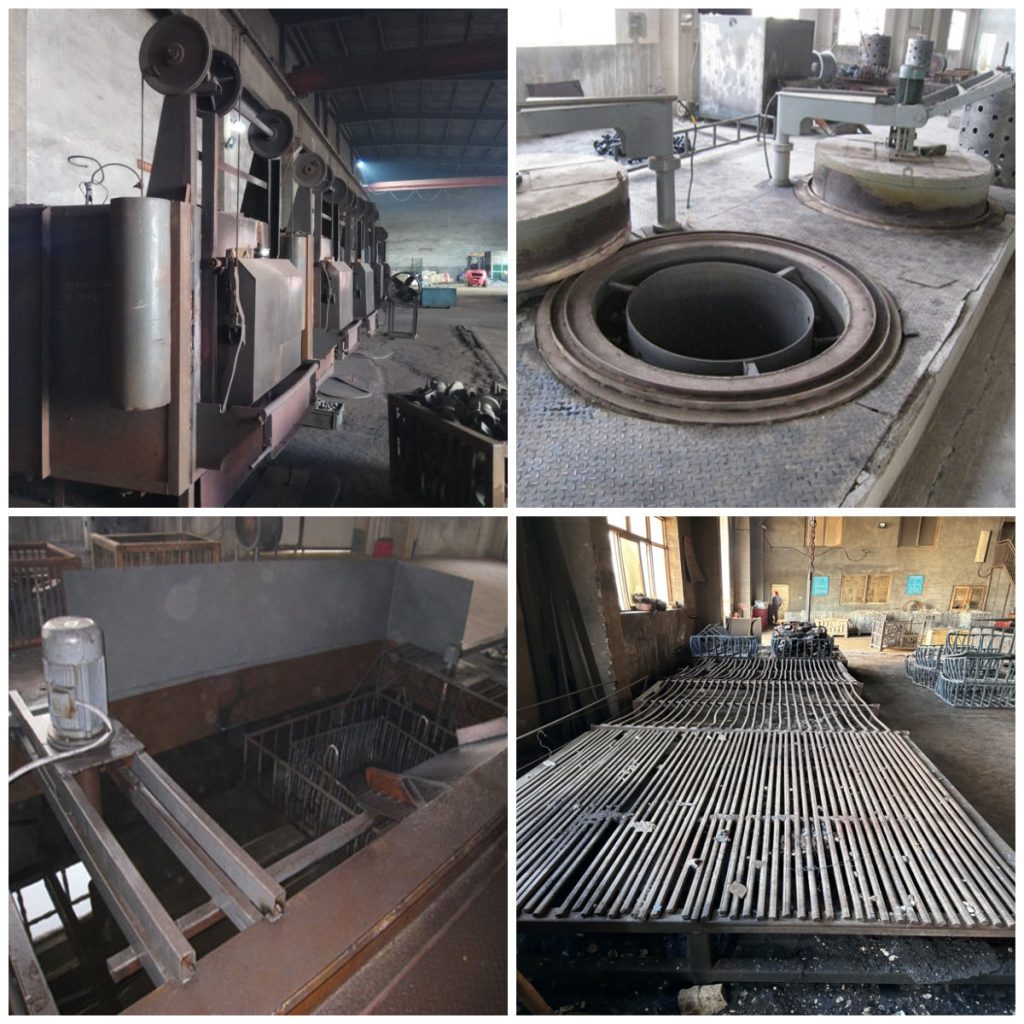

Heat Treatment We Can Do:
Normalizing
Annealing
Tempering
Quenching
Aging
