What is investment casting？

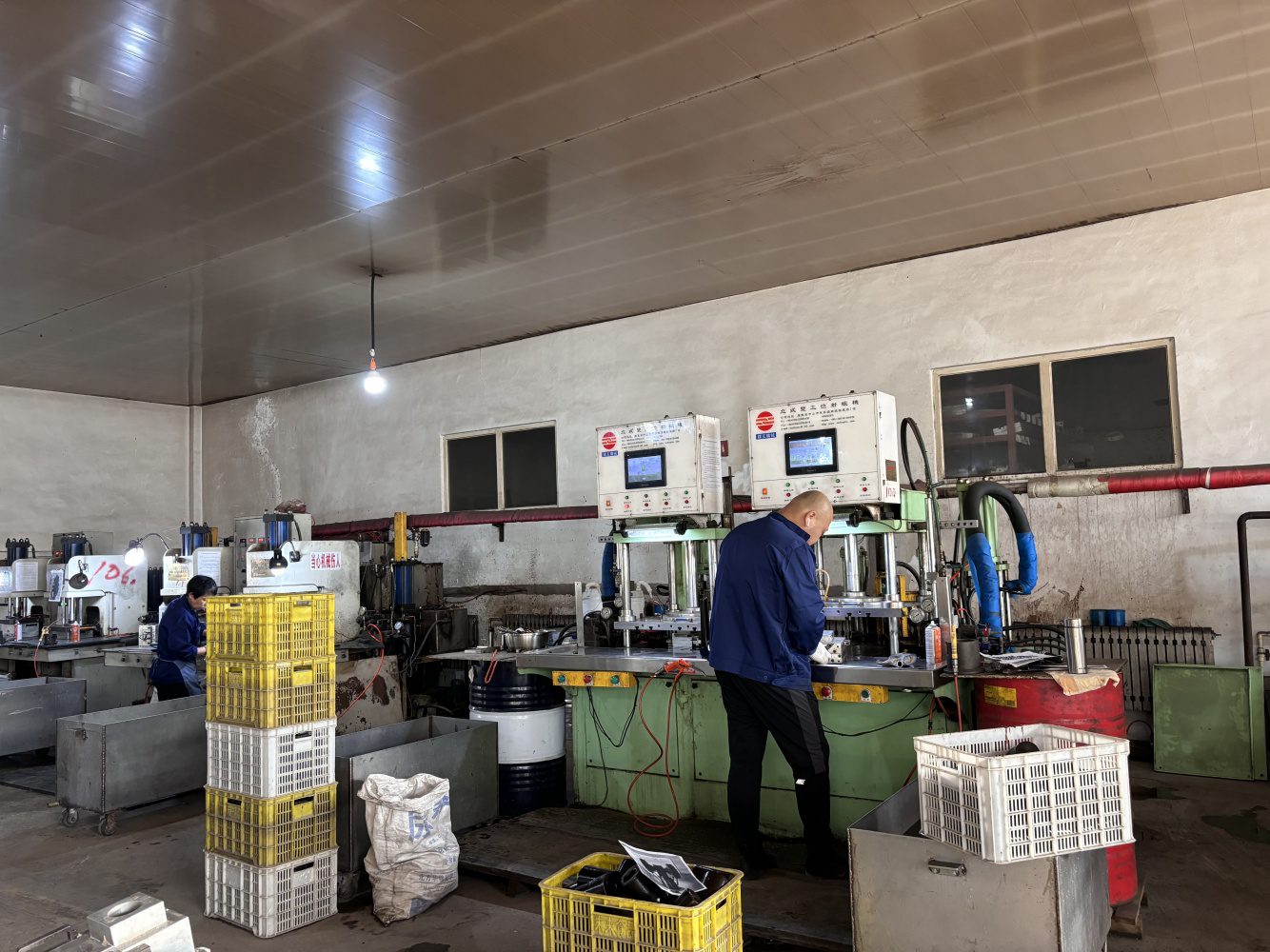

1. Pattern Creation
A wax pattern of the desired part is created. This pattern is an exact replica of the final steel component. Repairing is needed on wax pattern after checking.
2. Assembly of Wax Patterns
Multiple wax patterns are welded to a central wax sprue to form a “tree.” This allows multiple metal parts to be cast simultaneously.

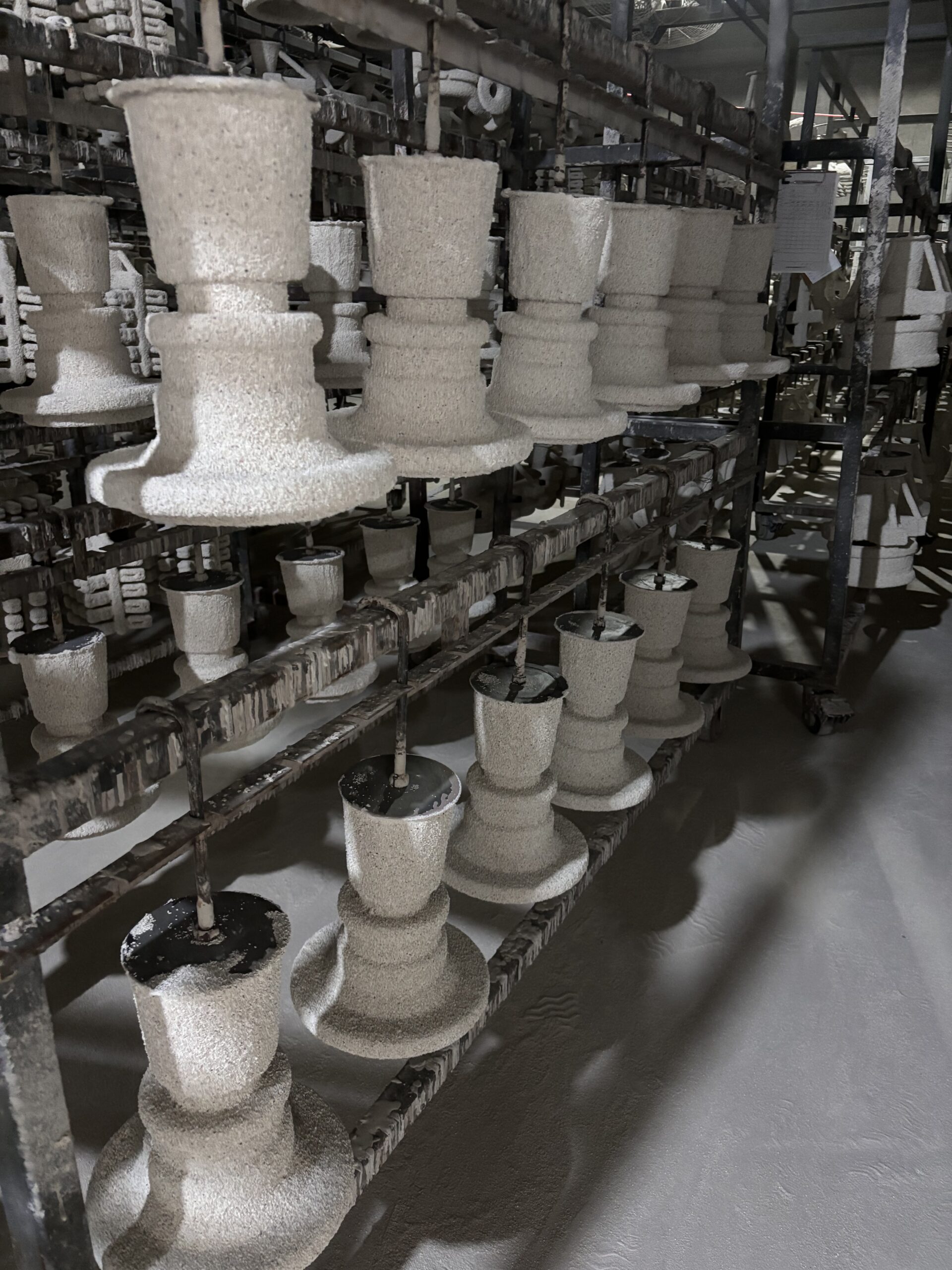

3. Shells Making
The wax tree is dipped into a slurry and then coated. This process is repeated several times to build a thick, durable shell around the wax patterns.There is silica sol shell, water glass shell and a composite shell.
4. De-waxing
The coated wax tree is air dried and heated in an autoclave or furnace, causing the wax to melt and drain out, leaving a hollow ceramic mold.
5. Roasting
The mold is fired at high temperatures to harden it and remove any residual wax, ensuring the mold is ready for melted metal pouring.

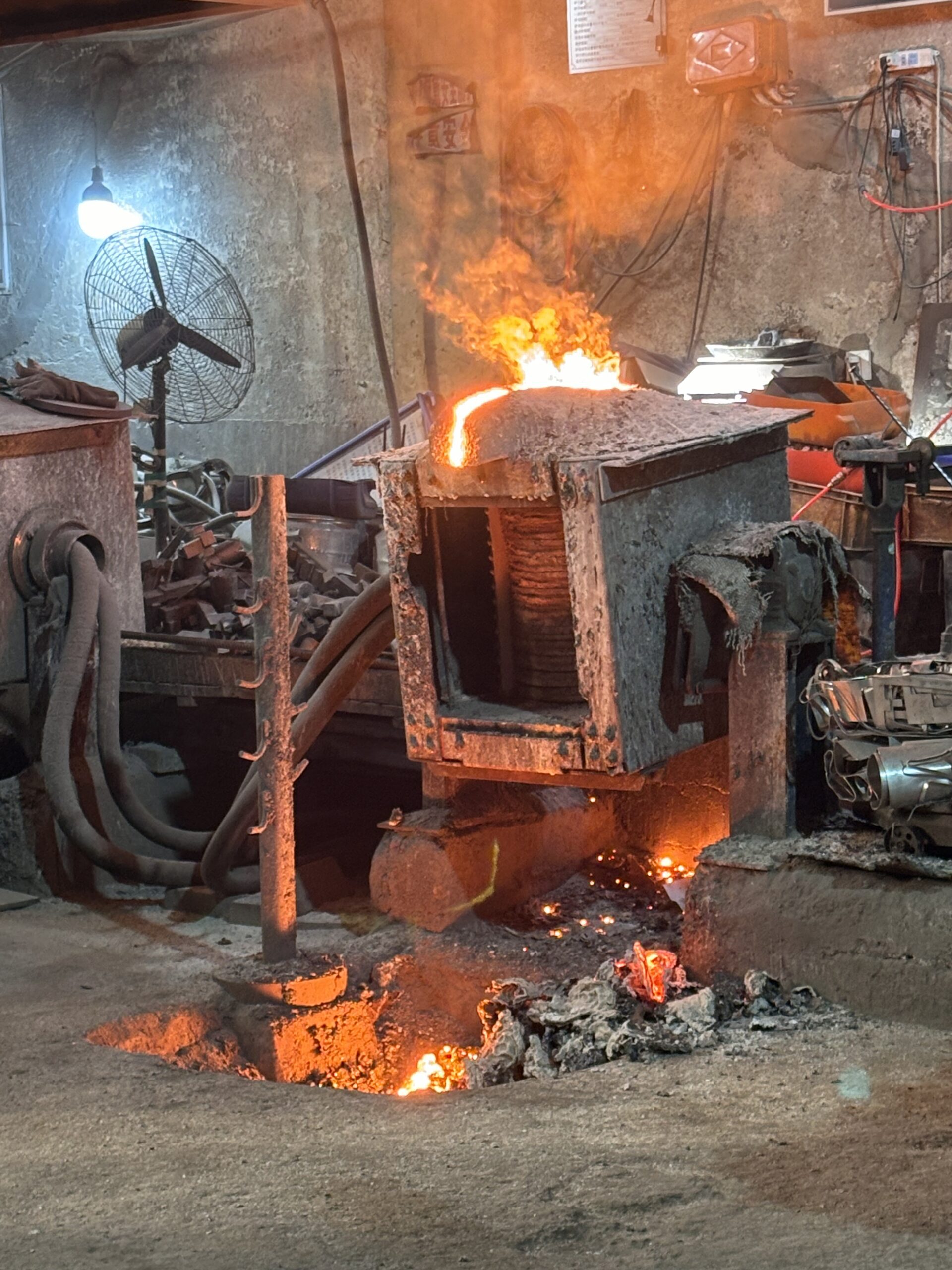

6. Pouring and Casting
Molten metal is poured into the preheated mold.
7. Cooling and Solidification
The mold is allowed to cool, and the metal solidifies into the shape of the desired cast parts.
8. Shell Removal
Once the metal has cooled, the shell needs to be vibrated and broken away using mechanical machine, revealing the metal casting parts.

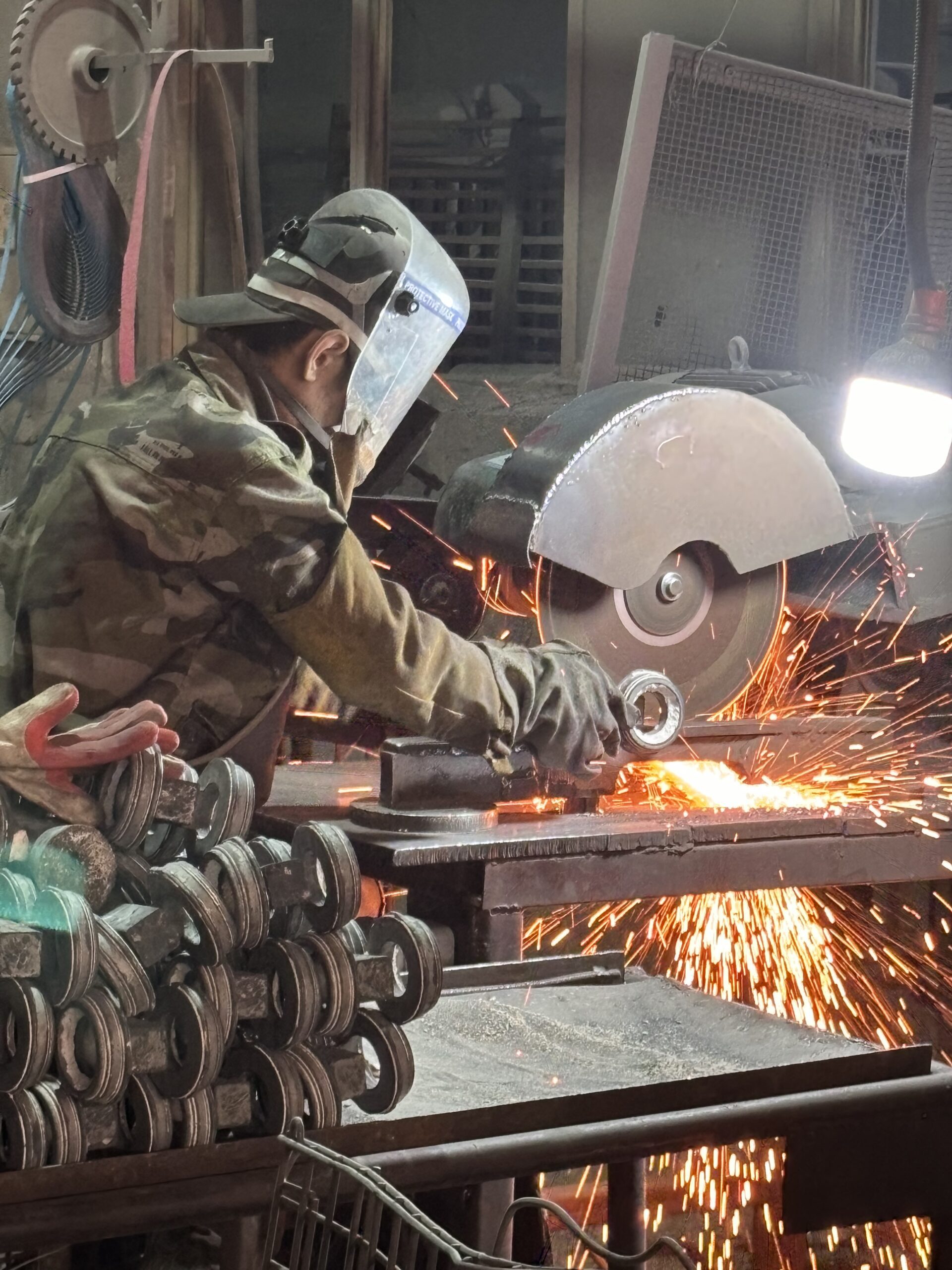

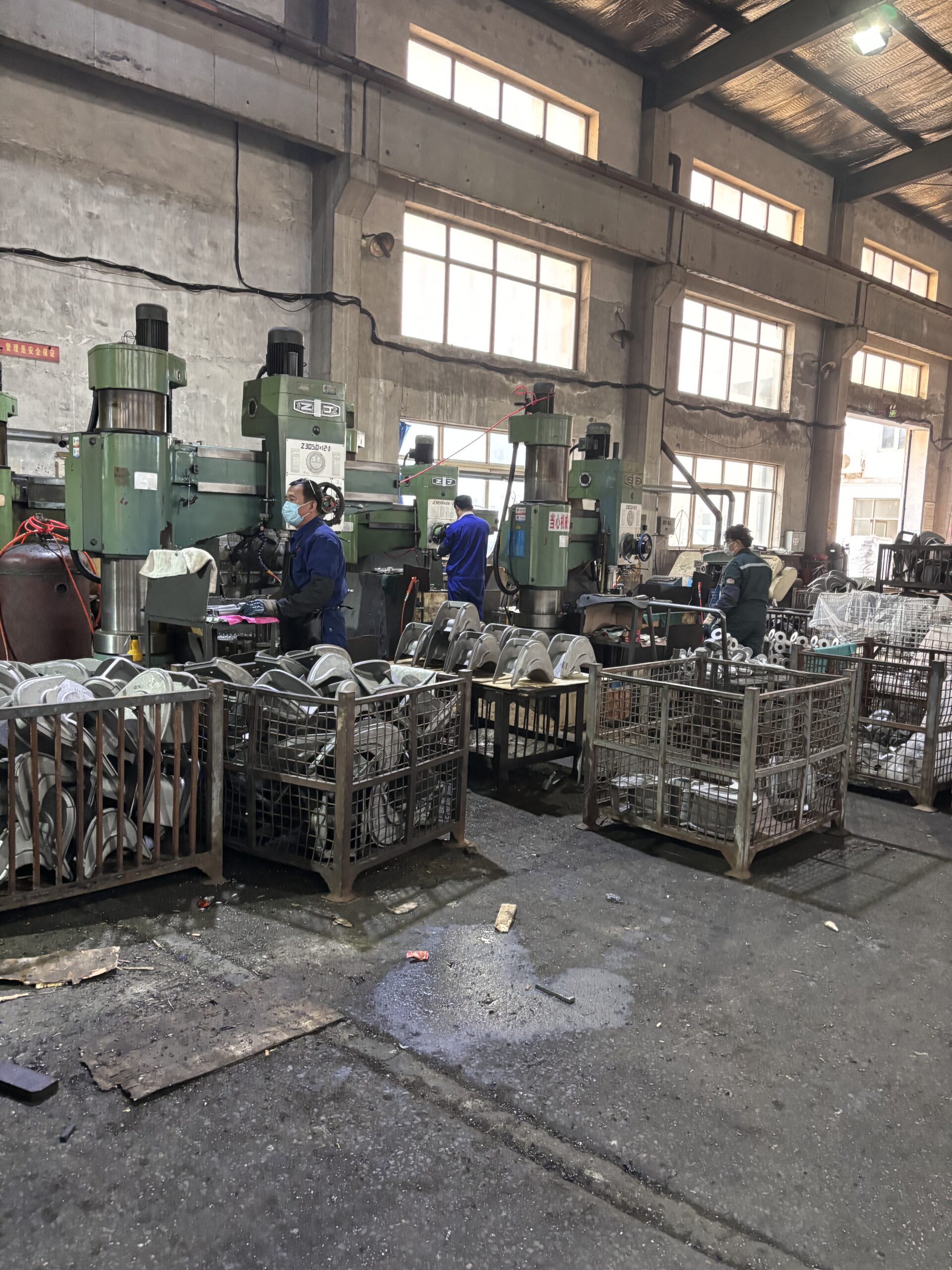

9. Cutting and Finishing
The individual steel cast parts are cut from the sprue and subjected to finishing processes such as grinding, polishing, or machining to achieve the final dimensions and surface quality of the steel cast.
1. High Precision and Accuracy
Investment casting processing can produce custom steel components with tight tolerances (typically ±0.005 inches or better) and intricate details, making it ideal for complex geometries.
2. Excellent Surface Finish
The ceramic shell process results in a smooth surface finish (typically 125–250 µin Ra), reducing the need for additional machining or polishing.
3. Material Versatility
This precision lost wax casting process supports a wide range of metals and alloys, including stainless steel, aluminum, titanium, carbon steel, and super alloys.
4. Complex Shapes
The precision investment casting process can produce custom steel parts with thin walls, fine details, and complex internal features that are difficult or impossible to achieve with other casting methods.
5. Minimal Post-Processing
Due to the high accuracy and surface finish, lost wax cast parts often require little to no additional machining, saving time and cost.
6. Scalability
Suitable for both small and large components production runs, the precision lost wax casting is versatile and cost-effective for various industries.
7. Reduced Waste
The process generates minimal waste, as the ceramic shell can be recycled, and excess metal can be reused.
8. Consistency
The investment casting processing produces consistent and repeatable results, ensuring high-quality cast steel parts for critical applications.
Precision investment casting is known for its unique features, which make it a preferred choice for producing high-quality, complex engineering metal parts.
Investment casting is a versatile and efficient manufacturing process that offers numerous advantages. Its ability to produce complex, high-quality steel components with minimal waste makes it a valuable technique across a wide range of industries. Whether for industrial applications or artistic creations, precision casting continues to play a vital role in modern industrial manufacturing, combining ancient craftsmanship with cutting-edge technology. Below are the key advantages of investment casting processing:
1. High Precision and Complex Geometries
One of the most significant advantages of investment casting is its ability to produce steel parts with intricate designs and tight tolerances. The process allows for the creation of complex shapes, thin walls, and fine details that would be difficult or impossible to achieve with other manufacturing methods. This makes it ideal for components such as turbine blades, engine parts, and medical implants, where accuracy is critical.
2. Excellent Surface Finish
Silica Sol casting produces metal parts with a smooth surface finish, often eliminating the need for additional machining or finishing processes. The ceramic mold used in the process ensures that the final product has a high-quality surface, reducing post-production costs and time.
3. Material Versatility
Investment casting supports a wide range of materials, including stainless steel, aluminum, titanium, brass, and superalloys. This versatility allows manufacturers to select the most suitable material for the specific application, whether it requires high strength, corrosion resistance, or heat tolerance.
4. Reduced Waste and Material Efficiency
The investment casting process is highly efficient in terms of material usage. Unlike machining, which removes significant amounts of material to achieve the desired shape, investment casting produces near-net-shape components, minimizing waste. This not only reduces material costs but also contributes to more sustainable manufacturing practices.
5. Cost-Effective for Small to Medium Production Runs
While the initial setup costs for investment casting can be higher than some other methods, it becomes cost-effective for small to medium production runs. The ability to produce complex parts with minimal machining and finishing reduces overall production costs, making it an attractive option for custom or low-volume manufacturing.
6. Design Flexibility
Investment casting offers unparalleled design flexibility, allowing engineers to create parts with unique geometries and features. This flexibility is particularly beneficial for prototyping and custom components, where design changes can be easily accommodated without significant additional costs.
7. Consistency and Repeatability
The investment casting process ensures high consistency and repeatability, making it suitable for producing large quantities of identical parts. This is especially important in industries like aerospace and automotive, where component reliability and uniformity are critical.
8. Minimal Post-Processing
Due to the high precision and excellent surface finish achieved through investment casting, many components require little to no post-processing. This reduces lead times and lowers production costs, making the process more efficient overall.
9. Suitability for High-Performance Applications
Investment casting is often used to produce components for high-performance applications, such as jet engines, gas turbines, and medical devices. The process can create parts that withstand extreme temperatures, pressures, and corrosive environments, making it indispensable in demanding industries.
10. Historical and Artistic Applications
Beyond industrial uses, investment casting has a long history in art and jewelry making. Its ability to capture fine details and intricate designs makes it a preferred method for creating sculptures, decorative items, and custom jewelry.
Lantian precision machinery manufacturing foundry has rich experience in investment casting processing. The company can produce silica sol shell investment casting, water glass shell investment casting and composite shell investment casting. The material we can cast include carbon steel casting, stainless steel casting and low alloy steel castings etc. The part weight is from 0.05 kgs to 80 kgs, the metal parts we cast is used for many industries till now, including automotive, marine and ships, agricultural machinery, petrochemical machinery, mining machinery, construction machinery, sanitary ware, banners, valves and pumps etc. And our engineered steel castings are exported to USA, Netherlands, Germany, Italy, Australia, Japan etc countries and area. Lantian Foundry is aim to provide high quality steel cast components to our clients, welcome your inquiry and contact.
